性能优异
满足不同应用需求
良好操作性
川禾热镶嵌料采用精细树脂为基础原料，以精选矿物或玻纤为填料，长时间热混炼后冷却造粒而制成。树脂在加热、加压情况下更易快速熔化，结合优异的流动性，使其迅速包覆填充样品，加速镶样进程。
-- 热镶嵌树脂均采用最为优质的树脂和填料，结合先进考究的混炼工艺。
- 粒粒均匀，颗颗一致，制样的稳定性和重复性优异。
-TRUER热镶嵌树脂具有完整的产品体系，种类覆盖所有热镶嵌的应用领域。
-UNIWARM通用型热镶嵌树脂，适用于无特殊要求的热镶嵌使用； EDGWARM保边型热镶嵌树脂，玻纤增强的高硬度热镶嵌料，适合涂层或保边样品使用； CO -NWARM导电型热镶嵌树脂适合有扫描电镜需求使用； TRAWARM透明热镶嵌树脂，适合关注细节或定位磨抛使用； ELEWARM电解型热镶嵌树脂，导电型金属粉末树脂，适用于样品电解抛光。
-不含有害物质，使用、操作和储存过程对人体无不良影响。
-有良好的操作性能，能耐实验室常规酸蚀剂和清洗剂。
UNIWARM universal hot mounting resin is suitable for hot mounting without special requirements

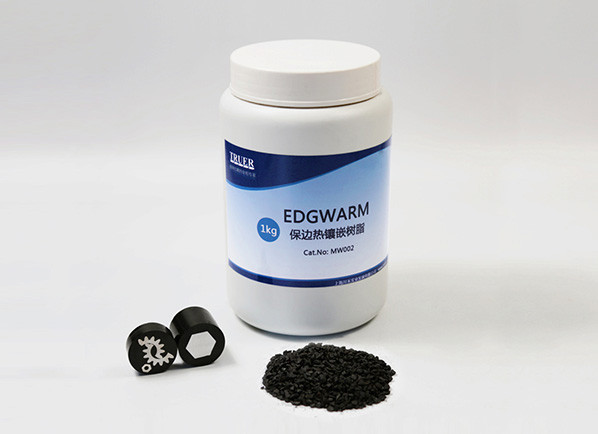

EDGWARMP rotective hot mounting resin is a high hardness hot mounting resin specially designed to protect the edge. It contains a high proportion of glass fiber which can significantly enhance the wear resistance of the resin.
TRAWARMTRAWARM is a transparent hot mounting resin.It adopts highly transparent and hard thermoplastic resin as a basic material. TRAWARM mounting is transparent without bubbles,micro texture tight and fitting. It is very suitable for focusing the application of grinding & polishing details with 360°transparent all-round.

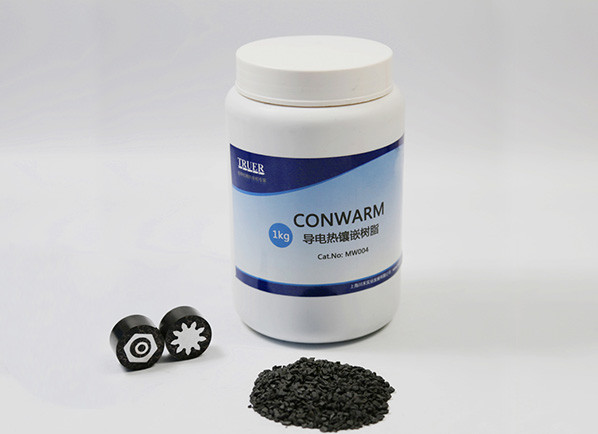

CONWARM is conductive hot mounting resin.It is made by mixing ultra-fine resin powder, filler and highly conductive carbon powder. CONWARM mounting has the characteristics of low resistance and stable conductivity.
ELEWARM resin is dedicated for electrolytic polishing.The resin contains high-surface conductive metal powder, which conduct with soluble in electrolyte at the same time. The sample analysis surface and the mounting material surface are polished synchronously during electrolytic polishing.
热镶嵌树脂 Hot Mounting Resin
热镶嵌树脂以热固性或热塑性树脂为基本原料，再结合纤维或其他填料，以增强树脂的韧性和耐磨性，经过混炼制得颗粒状镶嵌料。
在加热加压的时候，树脂软化熔融，渗透填充到零件的各缝隙和凹坑部位，在冷却后实现对样品的充分把持。
当实验室持续有大量试样需要制备，并要求制样质量高、尺寸外形统一、时间短，热镶是最理想的选择。热镶需要配套镶嵌机使用。

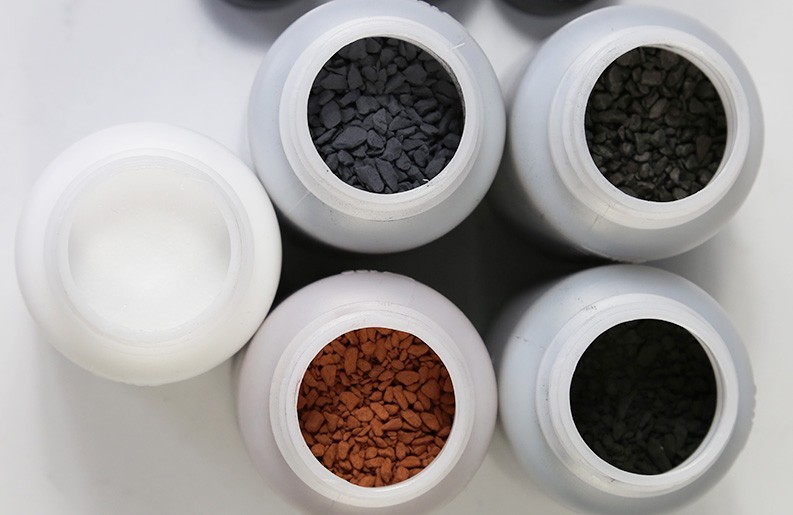

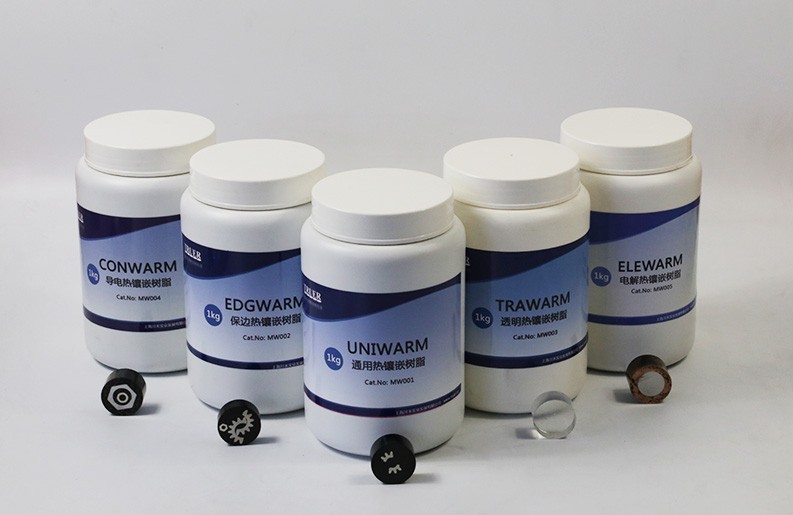

根据不同的应用需求，川禾拥有齐全的产品系列供用户选择。
|
产品型号 |
|
产品名称 |
|
包装数量 |
|
特性 |
|
应用领域 |
|
MW001 |
|

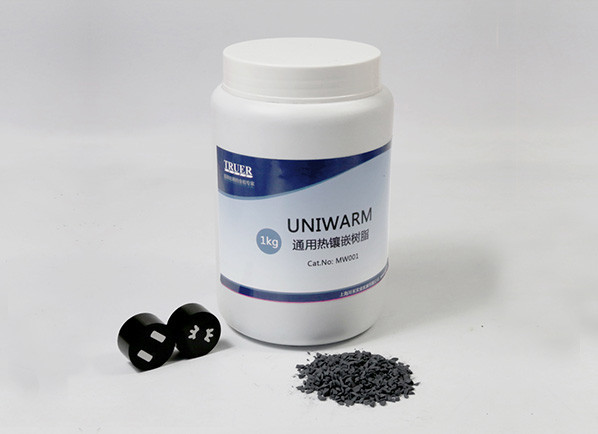

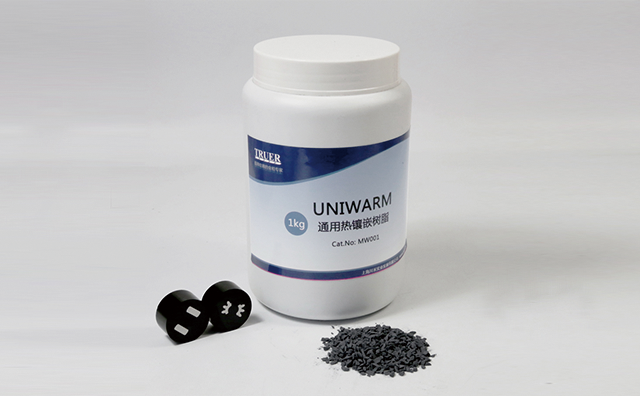

UNIWARM通用热镶嵌树脂 |
|
1kg/罐 |
|
采用热流变性优异的树脂为基础原料，以耐磨矿物纤维为填料，具有较高的硬度和优异的边缘清晰度，适用于无特殊要求的热镶嵌使用。树脂在加热、加压时快速熔化，快速流动渗透，加速镶样进程。
|
|
非特殊要求时，满足 |
|
MW002 |
|

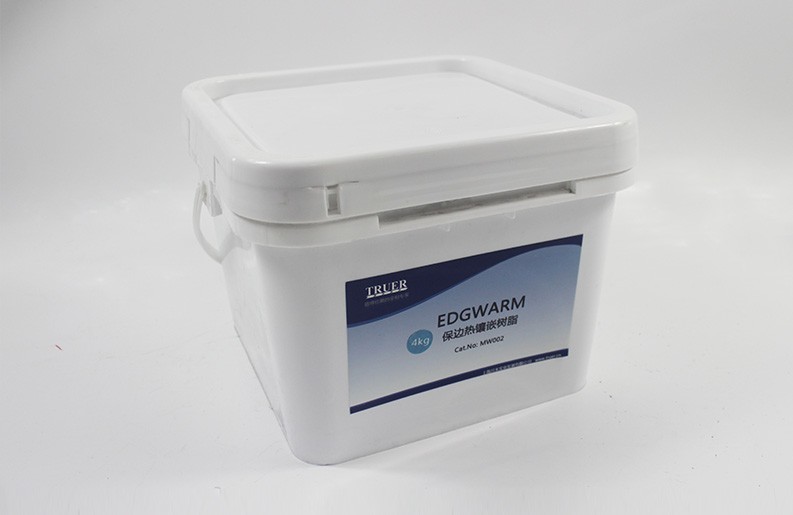

EDGWARM保边热镶嵌树脂 |
|
1kg/罐 |
|
保边型热镶嵌树脂是专门为保护边缘而设计的高硬度热镶嵌树脂。含有高比例的玻璃纤维，能显著增强树脂的耐磨损性能。 |
|
高硬度材料、脆性材 |
|
MW003 |
|

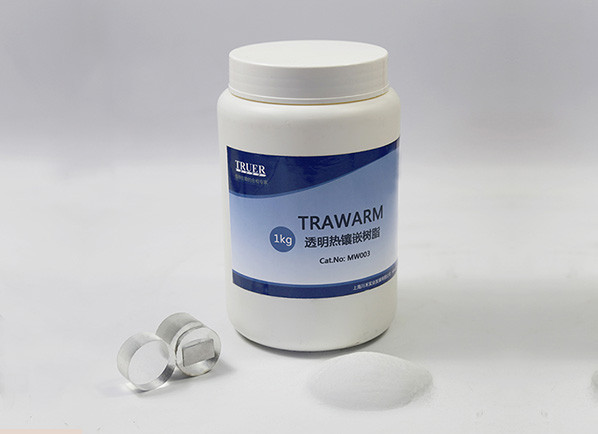

TRAWARM透明热镶嵌树脂 |
|
1kg/罐 |
|
采用高透高 快速包覆样品。冷却后硬度高，适 360°全方面透明，非常适合
|
|
透明镶样、多孔试样 |
|
MW004 |
|
CONWARM导电热镶嵌树脂 |
|
1kg/罐 |
|
将超细 同时它也适用于浅层电解抛光的使用。
|
|
电镜扫描 表层电解抛光 |
|
MW005 |
|
ELEWARM电解热镶嵌树脂 |
|
1kg/罐 |
|
电解抛光专用树脂，树脂中含有高 |
|
精细电解抛光 |
PDF
下载
客户说好才是真的好！无论产品还是服务，客户的真实反馈，是我们持续进步的源泉。客户的认可，是我们无尚的荣光。
“川禾Truer拥有经验丰富的技术服务工程师和应用专家他们具备丰富的制样技能和行业知识，能为您的材料和需求量身定制服务。对所售的设备提供上门安装调试外，还提供专业的制样技巧和实操经验。对所售的设备实行一年保修，终身维护，并提供年度在线技术支持及上门技术培训服务。”
UNIWARM universal hot mounting resin is suitable for hot mounting without special requirements
EDGWARMP rotective hot mounting resin is a high hardness hot mounting resin specially designed to protect the edge. It contains a high proportion of glass fiber which can significantly enhance the wear resistance of the resin.
TRAWARMTRAWARM is a transparent hot mounting resin.It adopts highly transparent and hard thermoplastic resin as a basic material. TRAWARM mounting is transparent without bubbles,micro texture tight and fitting. It is very suitable for focusing the application of grinding & polishing details with 360°transparent all-round.
CONWARM is conductive hot mounting resin.It is made by mixing ultra-fine resin powder, filler and highly conductive carbon powder. CONWARM mounting has the characteristics of low resistance and stable conductivity.
ELEWARM resin is dedicated for electrolytic polishing.The resin contains high-surface conductive metal powder, which conduct with soluble in electrolyte at the same time. The sample analysis surface and the mounting material surface are polished synchronously during electrolytic polishing.
